Logging While Drilling (LWD)

GeoFusion™ Laterolog Resistivity and Imaging LWD Tool

​
The GeoFusion tool offers precise well placement and characterization of the wellbore environment even at extremely high mud salinity. Available in two sizes (4.75” and 6.75”), the GeoFusion tool is a latest generation imaging and Laterolog resistivity LWD tool incorporated into a single collar. The operator can characterize the formation, identify dips, fractures and formation layers, optimize the mud weight, reduce the risk of circulation loss and identify the casing point. The GeoFusion tool can be combined with other Oliden tools in a modular BHA to eliminate the necessity for additional services, save rig time and reduce drilling costs.

Laterolog Resistivity Technology​​

Electric contact with the formation through conductive drilling fluid

• Electric contact with the formation through conductive drilling fluid.
• Excellent thin bed response.​
• Azimuthally focused and relatively unaffected by anisotropy effects.
• Bit resistivity measurement.

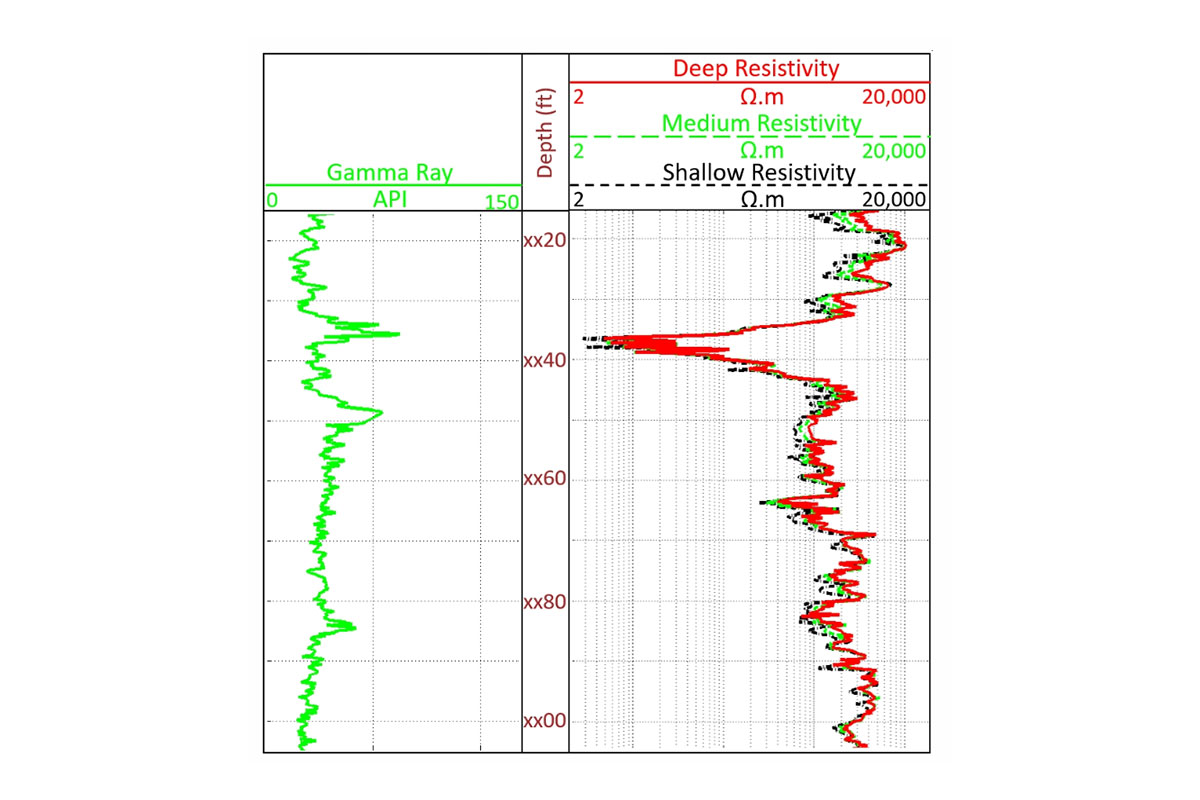

Deep Resistivity Measurement

• 3 focused resistivity measurements which are all azimuthally focused and have outstanding vertical resolution.
• Measurement range of the tool is from 0.1 to 20,000 Ohm-m 20,000 ohm-m.

Applications and Benefits

With the GeoFusion tool, companies can now access under-developed, thin-bed reservoirs to compensate for the field productivity reduction over time. The measurements, images and azimuthal provide a detailed geological analysis for precise geosteering to maximize the drainage within the target zone. It also provides a much better understanding of the reservoir properties for future field development.

Accurate formation evaluation in high resistivity reservoir

• ​​Discriminate between high resistivity hydrocarbons and evaporates in water-based mud
• Measure a wide range of resistivities from 0.1 to 20,000 Ohm-m
• ​Discriminate thin-bed resistivities in conductive mud thanks to 0.4 in-vertical resolution.
• Understand formation heterogeneity (facies, primary and secondary porosities – vugs, fractures, faults) through image-based interpretation.

Geomechanical analysis

• ​​Characterize natural and drilling-induced fractures to evaluate the formation stresses around the borehole.
• Run borehole stress analysis for future field development plan (safe mud weight windows according to field stresses​).

Enhance well trajectory positioning

• Receive azimuthal gamma ray even while sliding.

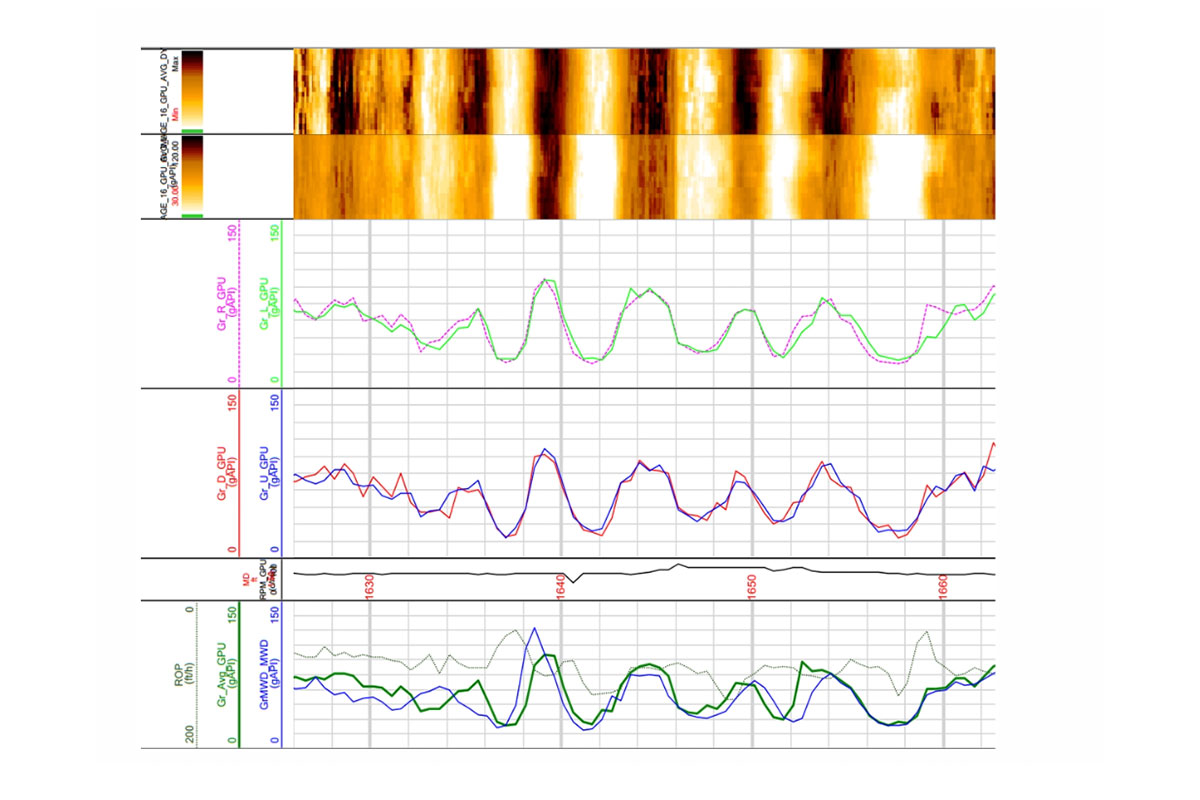

• Interpret apparent formation dip with up and down quadrant Gamma ray.
• ​Adjust landing marker compared to seismic interpretation.
• ​Azimuthal reading received in real-time and images obtained from recorded data after surface processing.

Early indication of reservoir top

• ​​Detection of geopressure anomaly using bit resistivity measurement before bit penetration occurs.
• Prevent drilling tens of feet in unwanted formation.
• ​Real-time geostopping for coring and casing point selection at the top of the target zone in all mud types.

GeoFusion Specific Technology Structural and Stratigraphic features

• 128 sector resistivity images.
• Dip extrapolated for updates to the geologic model.

TerraFusion™

Azimuthal Gamma Ray and Ultrasonic imaging LWD Tool. The TerraFusion tool offers the best insights for geosteering, borehole quality and geological structures as well as revealing fracture networks in all mud types. Available in two sizes (4.75” and 6.75”), the TerraFusion is a latest generation Azimuthal Gamma Ray and Ultrasonic imaging LWD tool incorporated into a single collar. Designed for both oil-base and water-base muds it provides a comprehensive reservoir description through structural analysis, sedimentology and sequence stratigraphy.

Applications and benefits:

The TerraFusion generates multiple sourceless borehole images that are derived from the ultrasonic measurements in all mud types. The integration of the annular pressure sensor (APWD) with ultrasonic imaging provides insights that permit advanced geomechanical analysis. The tool is the shortest in its category, making the BHA less sensitive to borehole conditions and the measurements closer to the bit.

Structural and stratigraphic features and borehole conditions

High-definition ultrasonic imaging with an annular pressure measurement.

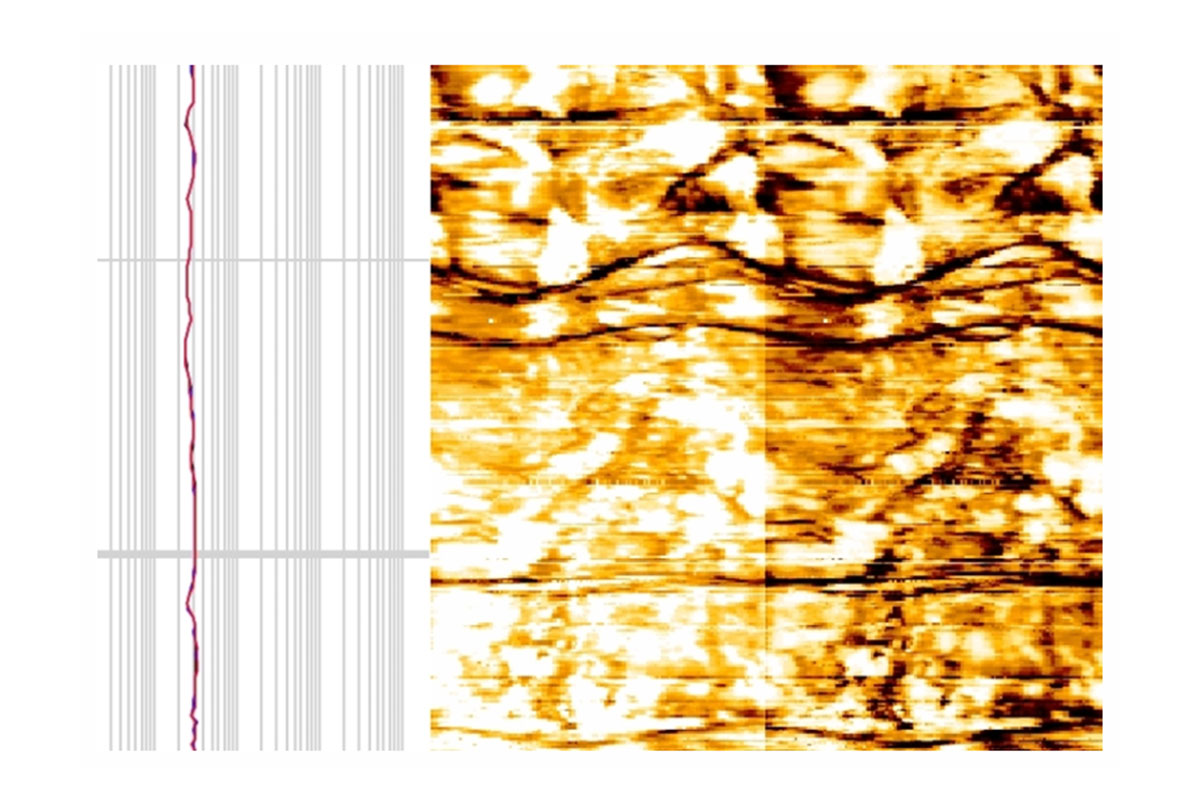

Reflected amplitude ultrasonic images reveal structure, formation layers, fractures, vugs and breakouts at an extremely high resolution.
Accurate determination of borehole events and structure.

Drilling & Completion Optimization

• Realtime geomechanics and wellbore stability when comparing safe mud weight windows with realtime equivalent circulating density (ECD) and equivalent static density (ESD) calculation.
• Detailed borehole shape and deformation analysis from precise ultrasonic caliper measurements​​ – can be used for geomechanics and cement volume.

Enhance well trajectory positioning

• Extremely high vertical resolution.Interpret apparent formation dip with up and down quadrant Gamma ray.
• Adjust landing marker according to seismic interpretation.
• ​Azimuthal reading received in real time and images obtained from recorded data after surface processing.

TerraFusion Specific Technology

Pressure Technology​​

• Annular pressure sensor for ECD and ESD

Ultrasonic Technology:

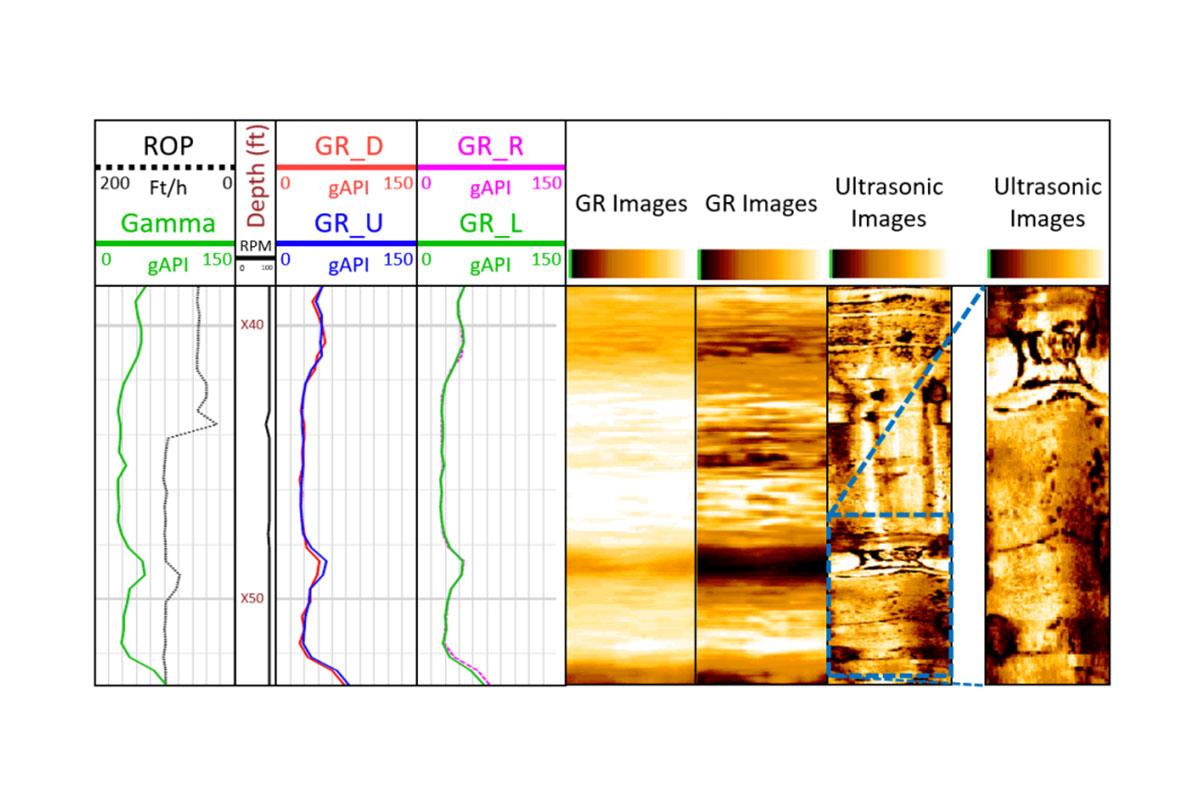

• Multiple 128-sector ultrasonic images

Structural and Stratigraphic features​

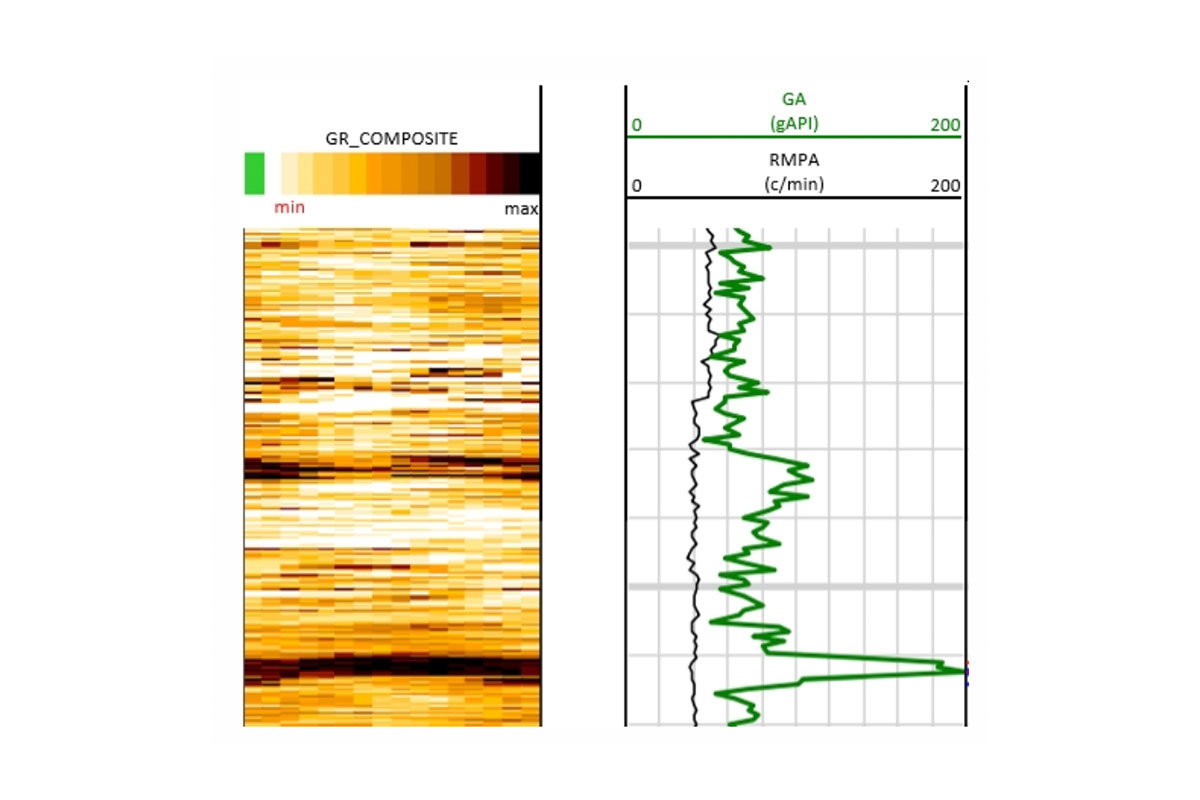

• 16 sector Gamma Ray images
